Upper Feed Beam Aluminium Extruded Profiles 7250MM Long

Upper Feed Beam Aluminium Extruded Profiles 7250MM Long

Upper Feed Beam Aluminium Profiles

7250MM Long Aluminium Extruded Profiles

7020 T6 Aluminium Extruded Profiles

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

SVK7250MM

Contact Us

Request A Quote
Product Details
Length:
7250MM Long Feed Beam Used On Mining Industry
Application:
Mining Industry, Tunnel Dring Etc.
Materials:
7020 Series Aluminum Alloy
Weight Per Meter:
Approximately 33KGS
Distoration Tolearnce:
5mm For Whole Length
Length Maximum:
7.25 Meters
Lead Time:
Immediately
Payment & Shipping Terms
Minimum Order Quantity
5 Units
Packaging Details
Plywood Case Length 400cm to 750cm
Delivery Time
Within 3 Days
Payment Terms
T/T
Supply Ability
50Units/Month
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description

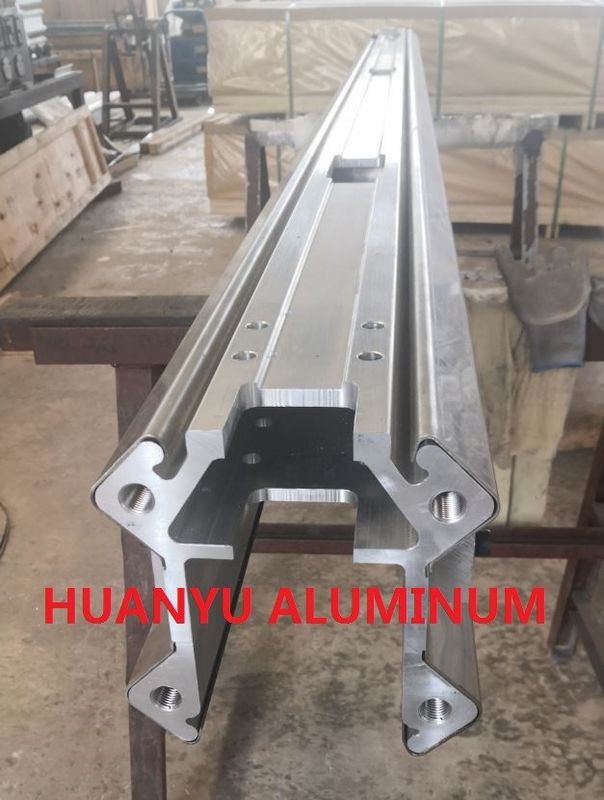

7250MM Long TF500 Upper Feed Beam Aluminium Extruded Profiles For Rock Drilling Rig



Customized TF500 Feed Beam Upper Beam And Ensure Immediate Shipment



FEATURES

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

                     curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic:
σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,250mm

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 33kgs/meter

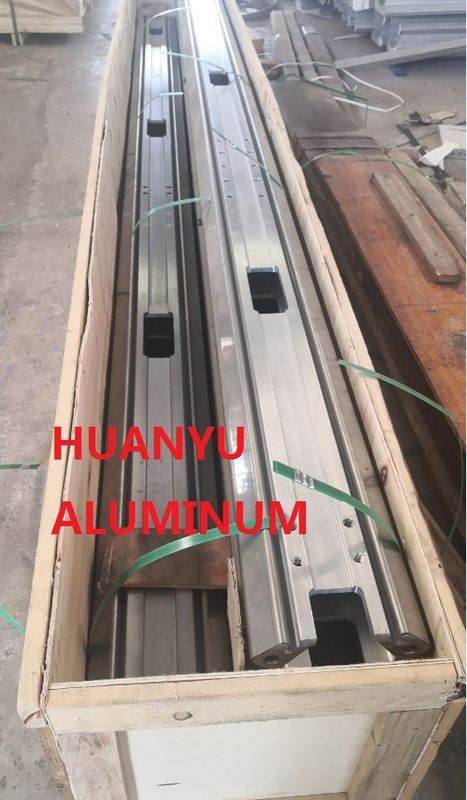

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 740cm X19.7cm X19.6 cm



Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length
