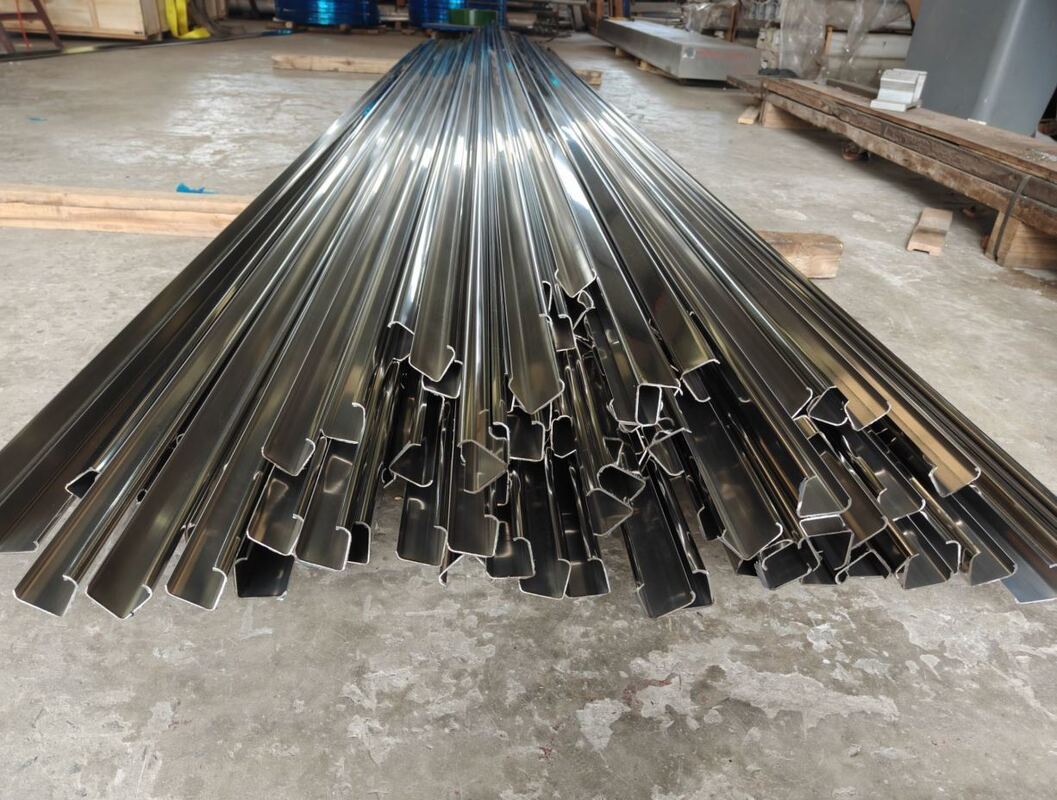

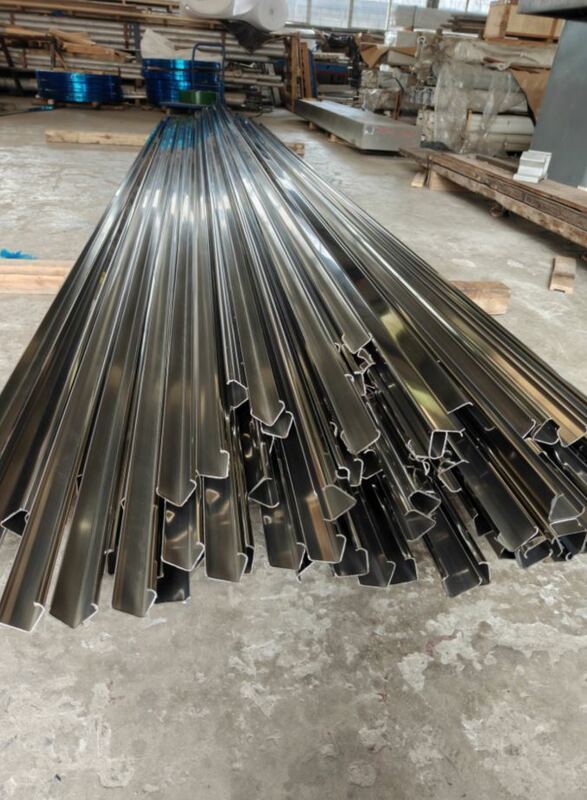

Name: Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles
Brand: Chongqing Huanyu Aluminum Material Co., Ltd.
SKU: HYAFB7005BMH2000
Price: 5,199.00 USD
Availability: InStock

Home > Products > Aluminium Extruded Profiles >

Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles

Stainless steel slide bars for BMH2000

Aluminium extruded feed beam profiles

BMH2000 series slide bars with warranty

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

HYAFB7005BMH2000

Request A Quote

Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles

Product Details

Feed Beam Type:

ATLAS 281 JUMBO BOOMER

Length:

4800MM

Matchining:

Depends On Buyer's Demand

Material:

7000 Series Aluminum Alloy

Application:

HYDRAULIC ROCK DRILLING RIG

Net Weight Per Meter:

23.4 Kilograms Per Meter

Payment & Shipping Terms

Minimum Order Quantity

5 Units

Packaging Details

Plywood Case Length 400cm to 700cm

Delivery Time

1 Week

Payment Terms

T/T, T/T

Supply Ability

130Units/Month

RELATED PRODUCTS

+8617353269062

Smp.ite01@gmail.com

86-023-65820299-104

Contact Now

Product Description

Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles

281 Jumbo Bommer VIGA2000 BMH2000 Aluminum Extruded Profile

FEATURES

1. Material: Aluminum Alloy 7005 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 490cm X23cm X21 cm

SPECIFICATIONS

Material Option	Aluminum Alloy 7005
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	Standard 14FT (4267mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

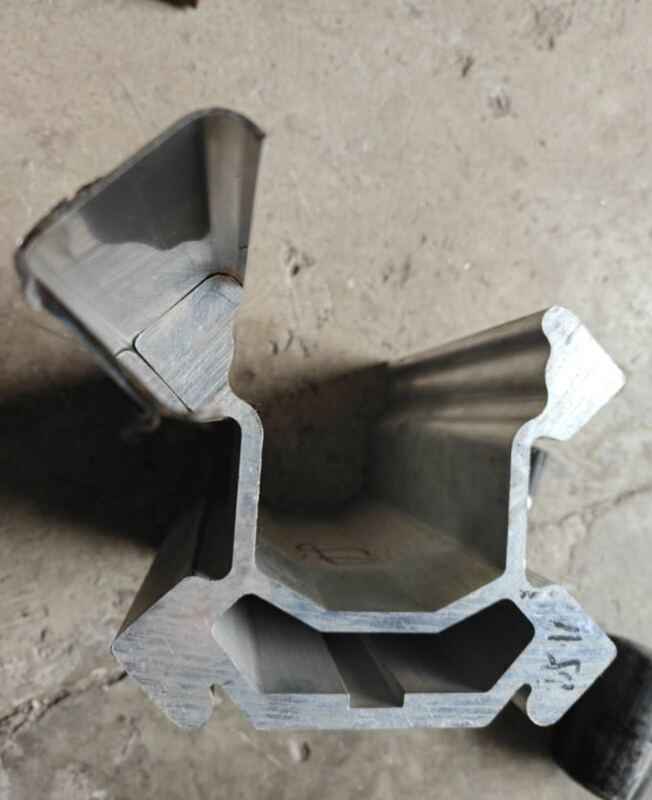

Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles 0

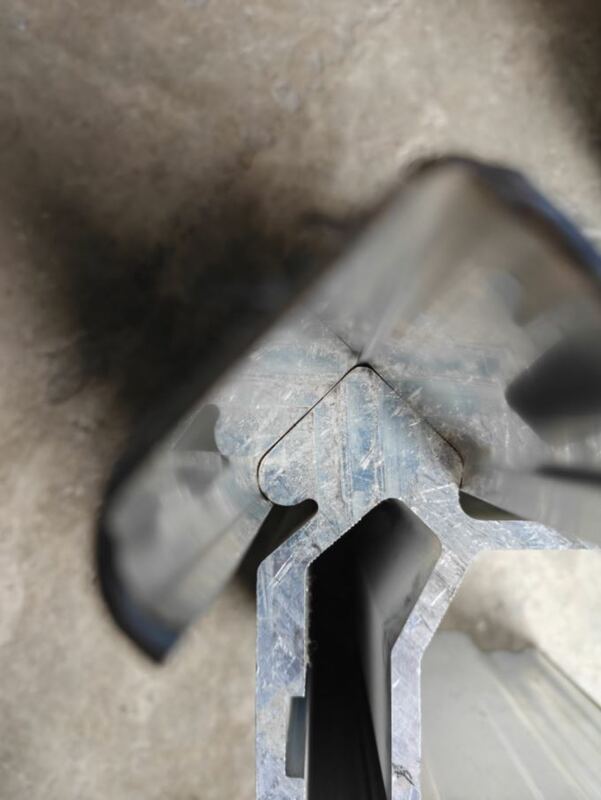

Stainless Steel Slide Bars Used On BMH2000 Series Aluminium Extruded Feed Beam Profiles 1
