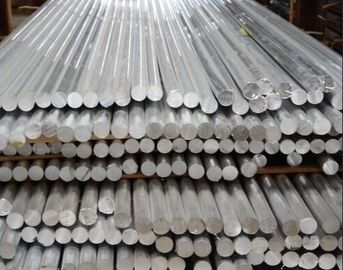

2017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components

2017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components

aluminium round rod

aluminium alloy billet

Place of Origin:

CHINA

Brand Name:

HUANYU

Model Number:

HYRB2017T4

Contact Us

Request A Quote
Product Details
Surface Treatment:
Mill Finish
Machining Characteristics:
Good
Applications:
Strength Structural Components, Aircraft, Machine Construction, Military Equipment, Rivets.
Welding:
Suitable For Welding Only By Resistance Welding
Workability:
Fair
Payment & Shipping Terms
Minimum Order Quantity
1 METRIC TON
Price
Negotiable
Packaging Details
PLYWOOD CASE
Delivery Time
40 DAYS
Payment Terms
T/T
Supply Ability
40 METRIC TON PER MONTH
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description

2017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components


Aluminum 2017 is a heat treatable wrought alloy that offers decent strength, ductility, and good machinability. Aluminum 2017 offers more strength than Aluminum 2011, and has fair workability and corrosion resistance.





Aluminum 2017 Applications:



  • Aerospace components
  • Rivets
  • General structural components
  • Transportation
  • Fasteners
  • Screw machine products
  • Gauges
  • Pulleys
  • Needles for knitting

Aluminum 2017 chemical composition that consists of:

  • Al 91.5-95.5%
  • Cu 3.5-4.5%
  • Mn 0.4-1%
  • Fe 0.7% max
  • Mg 0.4-0.8%
  • Zn 0.25% max
  • Ti 0.15%
  • Cr 0.1%
Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Others Each Other Total
2017 USA Rem 0.20-0.8 0.7 max 3.5-4.5 0.40-1.0 0.40-0.8 0.10 max 0.25 max 0.15 max 0.05 max 0.15 max
Weight% Al Si Fe Cu Mn Mg Cr Zn Zr + Ti Others Each Other Total
2017A EAA Rem 0.20-0.8 0.7 max 3.5-4.5 0.40-1.0 0.40-1.0 0.10 max 0.25 max 0.25 max 0.05 max 0.15 max





Typical Mechanical Properties



Material Condition Tensile Strength (N/mm²) min Yield Strength Elongation in 4D %
ksi Mpa ksi Mpa
2017 2017-T4 Bar 55 379 32 221 12



2017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components 02017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components 12017 T4 Aluminum Solid Round Bar High Strength Fair Workability For Aerospace Components 2
