Chongqing Huanyu Aluminum Material Co., Ltd. bring quality to all over the world!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUANYU |
| Model Number: | HYFP7075T6 |
| Minimum Order Quantity: | 1 METRIC TON |
| Price: | NEGOTIABLE |
| Packaging Details: | PLAYWOOD CASE |
| Delivery Time: | 4-6 WEEKS |
| Payment Terms: | T/T |
| Supply Ability: | 120 METRIC TON/ MONTH |
| Diameter: | 478mm | Wall Thickness: | 38mm |
|---|---|---|---|
| Forged Tube's Length: | 1785mm | Application: | Aircraft Parts |
| Heat Treatment: | T6 | Aluminum Alloy Designation: | 7075 |
| Product Processing Type: | Forging | Shape: | Rounds |
| High Light: | aluminum forged products,aluminum forged tubes |
||

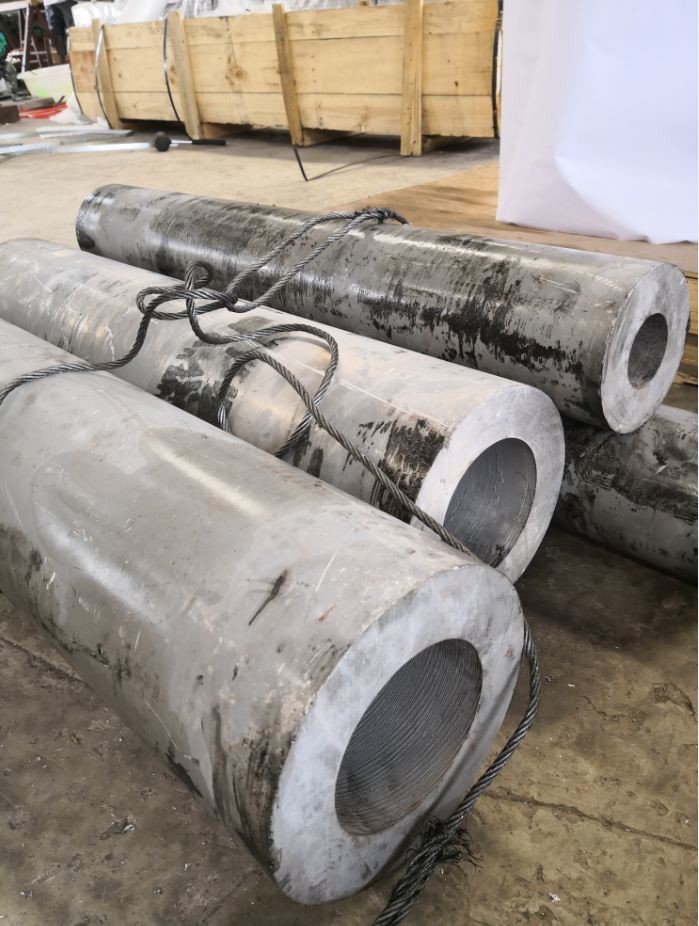

Diameter 478mm , Wall Thickness 38mm 7075 T6 Forged Tubes 7075 T6 Aluminum Forging Parts
7075 aluminum forged tubing parts
is a zinc alloyed aluminum product heavily used in the aircraft / aerospace industry due to its superior strength. The T6 temper offers fair machinability, resistance welding and corrosion resistance. The T73 temper offers superior stress corrosion resistance.
| 7075 Aluminum Alloy Chemical Composition Limits | |||||||||||
| Weight% | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Others Total |
| 7075 min | Rem | - | - | 1.2 | - | 2.1 | 0.18 | 5.1 | - | - | - |
| 7075 max | Rem | 0.40 | 0.50 | 2.0 | 0.30 | 2.9 | 0.28 | 6.1 | 0.20 | 0.05 | 0.15 |
| Characteristic | English | Metric |
| Nominal Density (68° F / 20°C) | 0.101 lbs./ in ³ | 2.80 Mg/m³ |
| Melting Range | 990° F - 1175° F | 532°C - 635 °C |
| Specific Heat (212 °F / 100°C | 0.23 BTU/lb - °F | 960 J/kg-°K |
