Place of Origin: | CHINA |
---|---|
Brand Name: | HUANYU |
Model Number: | HYAP6063T5 |
Minimum Order Quantity: | 5 METRIC TONS |
Price: | NEGOTIABLE |
Packaging Details: | PLYWOOD CASE |
Delivery Time: | 40 DAY |
Payment Terms: | T/T |
Supply Ability: | 240 METRIC TONS PER MONTH |
Surface Treatment: | Mill Finish | Outer Diameter: | 207mm |
---|---|---|---|
Application: | Motor Enclosure, Motor Casing, Motor Shell | Profile Height: | 354.6mm |
Cooling Method: | Water Cooling | Material: | Aluminum Alloy 6063 |
Temper: | T5 | ||
High Light: | aluminum extrusion profiles,aluminium extrusion bar |

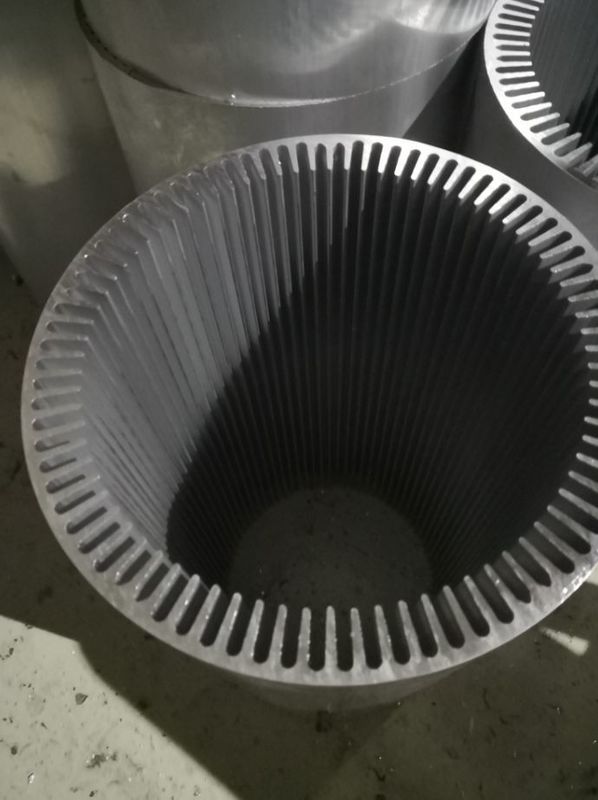

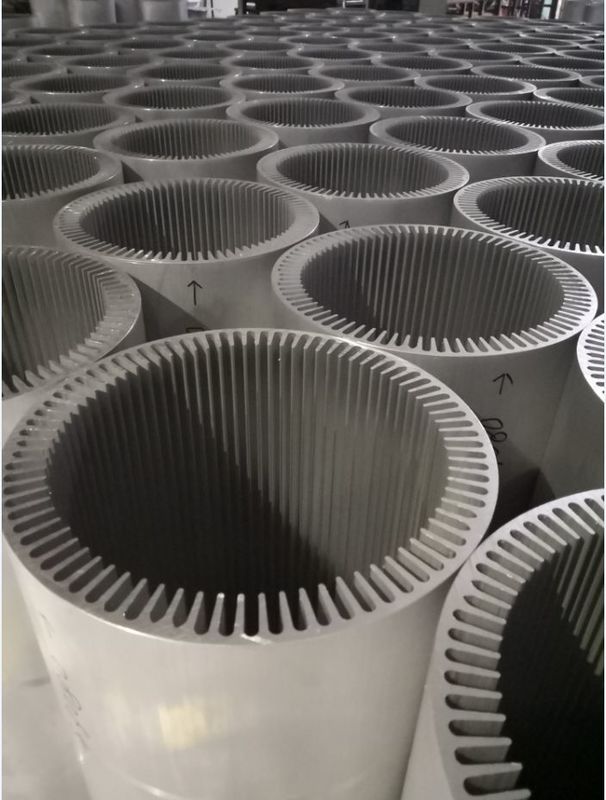

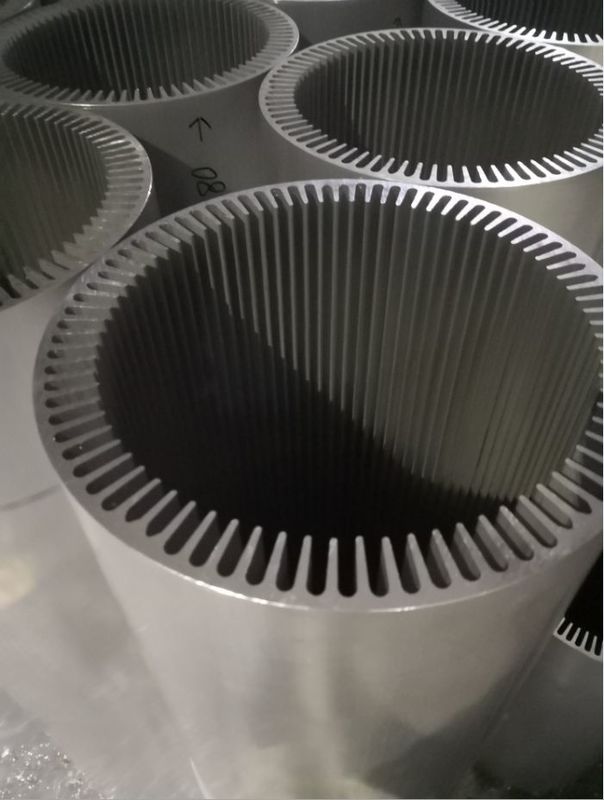

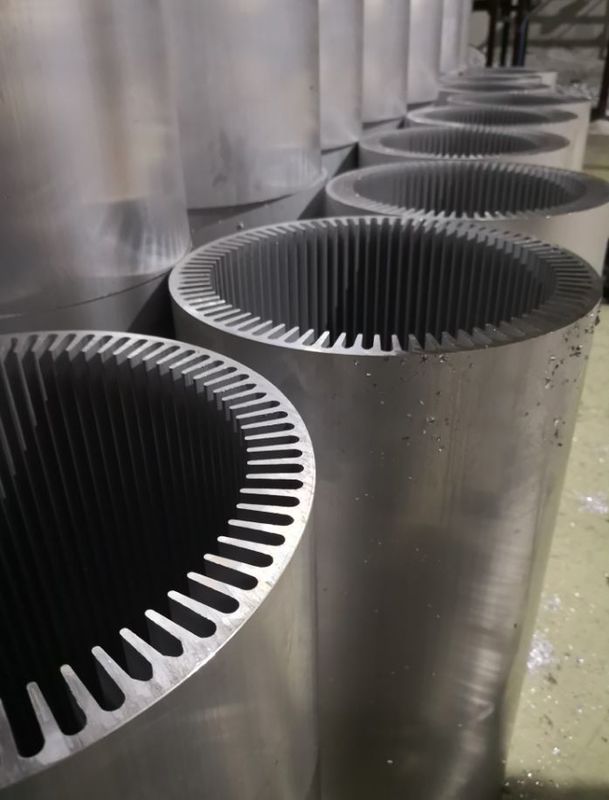

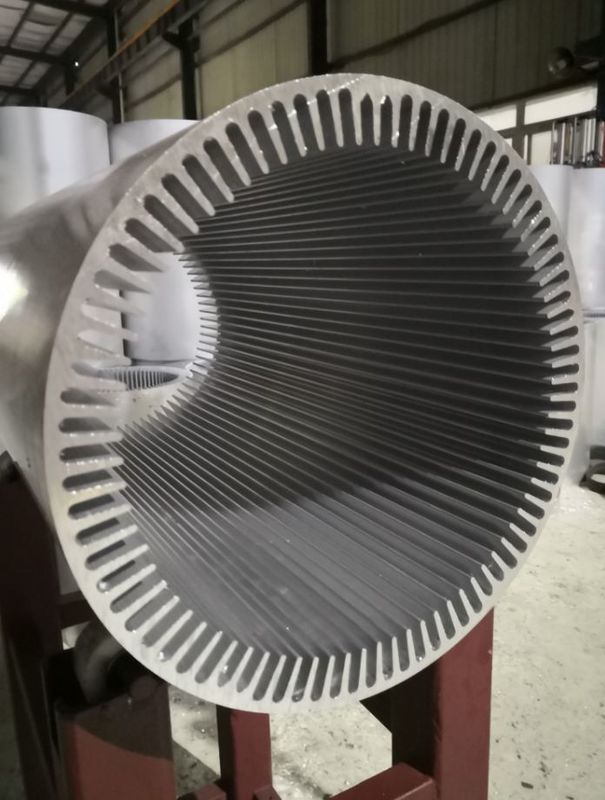

6063 T5 Aluminum Extruded Profiles aluminum case used on DC motor enclosure DC motor casing DC motor shell
6063 T5 Aluminum Extruded Profiles
Application : motor enclosure , motor casing , motor shell
Outer Diameter: 207mm
Profile Height: 354.6mm
Cooling Method: Water Cooling
Material: Aluminum Alloy 6063
Temper: T5
Technical Data Sheet
6063 Aluminum Alloy Chemical Composition Limits | |||||||||||
Weight% | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Others Total |
6063 | Bal | 0.2-0.6 | 0.35 max | 0.10 max | 0.10 max | 0.45-0.9 | 0.1 max | 0.10 max | 0.10 max | 0.05 max | 0.15 max |
Material | Diameter or wall thickness (") | Tensile Strength (ksi) min | Yield Strength (ksi) min | Elongation % in 2" |
Alloy 6063 | <0.125 | 30 | 25 | 8 |
Alloy 6063 | 0.125 - 1.00 | 30 | 25 |
