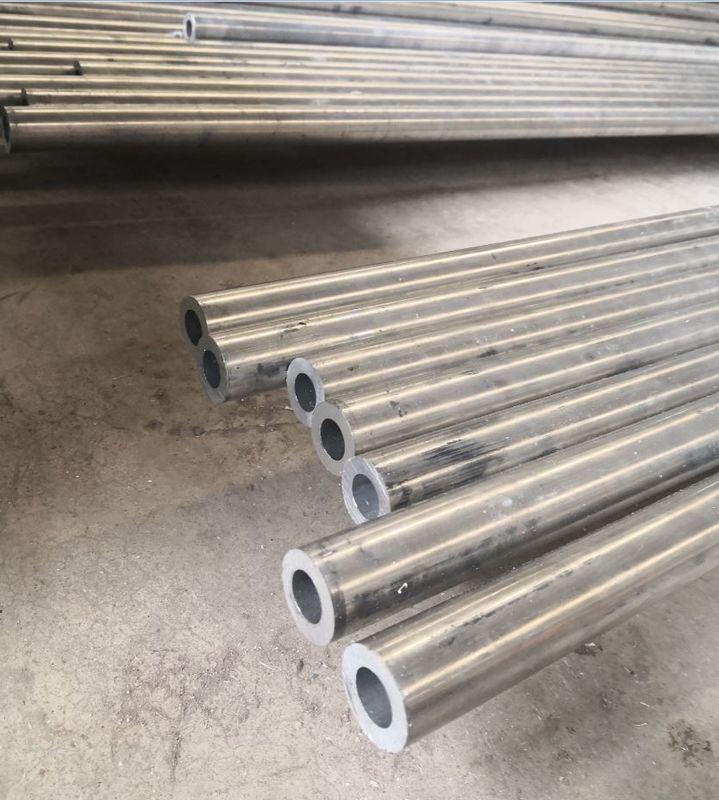

Name: H112 Diameter 32mm 5052 Marine Grade Aluminum Tubing
Brand: HUANYU
SKU: HYAT5052
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (167 reviews)

Home > products > Marine Grade Aluminum Tubing >

H112 Diameter 32mm 5052 Marine Grade Aluminum Tubing

5052 Marine Grade Aluminum Tubing

H112 Marine Grade Aluminum Tubing

32mm Marine Grade Aluminum Tubing

Place of Origin:

CHINA

Brand Name:

HUANYU

Model Number:

HYAT5052

Request A Quote

H112 Diameter 32mm 5052 Marine Grade Aluminum Tubing

Product Details

Application:

Pressure Vessels, Hydraulic Cylinders, Compressed Gas Cylinders

Resistance:

Marine Atmosphere And Salt Water Corrosion

Workability:

Excellent

Formality:

Good

Diameter:

32mm

Wall Thickness:

7mm

Length:

3,320mm

Heat Treatment:

H112

Material:

5052 Aluminum Alloy

Payment & Shipping Terms

Minimum Order Quantity

1 metric tons

Price

Negotiable

Packaging Details

Plywood Case

Delivery Time

30 days

Payment Terms

T/T

Supply Ability

45 Metric Tons Per Month

RELATED PRODUCTS

+8617353269062

Smp.ite01@gmail.com

86-023-65820299-104

Contact Now

Product Description

5052 Marine Grade Aluminum Tubing / High Strength Marine Grade Aluminum Pipe

Marine Grade 5052 H112 Aluminum Tubing

Aluminum material must be able to resist corrosive effects that are common in a sea water environment.

There are several different grades of aluminum that are suitable for marine conditions.

Marine grade aluminum, for the most part, is limited to the 5000 and 6000 series aluminum alloy.

Grade 5052 is an excellent marine grade for when formability is required.

If strength is more of a concern, grade 5083 is a good alternative.

Alloy 5052:

This is the highest strength alloy of the more non heat-treatable grades.

Its fatigue strength is higher than most other aluminum grades.

Alloy 5052 has a good resistance to marine atmosphere and salt water corrosion, and excellent workability.

It can be easily drawn or formed into intricate shapes.

5052 Aluminum Alloy Chemical Composition Limits
Weight%	Al	Cu	Si	Fe	Mn	Mg	Zn	Cr	Others
5052	Bal	0.10 max	0.25 max	0.40 max	0.10 max	2.2 / 2.8	0.10 max	0.15 / 0.35 max	0.05 max (each) 0.15 (total)
