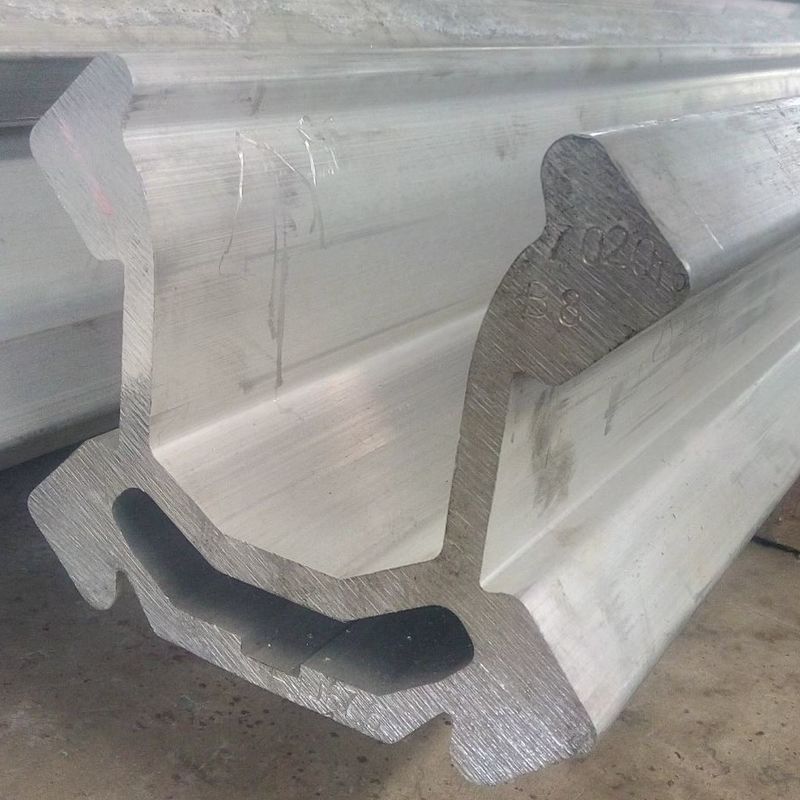

Name: Tunneling Blasting Boreholing Aluminium Feed Beam
Brand: Chongqing Huanyu Aluminum Material Co., Ltd.
SKU: HYAFB7020FB
Price: 4,543.00 USD
Availability: InStock

Home > Products > Aluminum Feed Beam Profiles >

Tunneling Blasting Boreholing Aluminium Feed Beam

Boreholing Aluminium Feed Beam

Tunneling Aluminium Feed Beam

Aluminium Jumbo Boomer Feed Beam

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

HYAFB7020FB

Request A Quote

Tunneling Blasting Boreholing Aluminium Feed Beam

Product Details

Feed Beam Type:

JUMBO BOOMER FEED BEAM

Length:

4 Meters Or 14 Feet Long

Matchining:

Depends On Buyer's Demand

Material:

7000 Series Aluminum Alloy

Application:

Tunneling Blasting Boreholing

Net Weight Per Meter:

26 Kilograms Per Meter

Highlight:

Boreholing Aluminium Feed Beam

Tunneling Aluminium Feed Beam

Aluminium Jumbo Boomer Feed Beam

Payment & Shipping Terms

Minimum Order Quantity

5 Units

Packaging Details

Plywood Case Length 400cm to 700cm

Delivery Time

1 Week

Payment Terms

T/T, T/T

Supply Ability

50Units/Month

RELATED PRODUCTS

+8617353269062

Smp.ite01@gmail.com

86-023-65820299-104

Contact Now

Product Description

Rock Drilling Spare Parts BMH2000 Feed Beam Application On Tunneling Blasting Boreholing

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 488cm X24cm X 20 cm

Material Option	Aluminum Alloy 7020
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Tunneling Blasting Boreholing Aluminium Feed Beam
