Underground Mining Industry Application Atlas Epiroc BMH2000 Feed Beam Aluminum Extrusion Profiles

Underground Mining Industry Application Atlas Epiroc BMH2000 Feed Beam Aluminum Extrusion Profiles

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

HYAFB7005

Contact Us

Request A Quote
Product Details
Feed Beam Type:
BMH2000
Length:
4267mm
Matchining:
Depends On Buyer's Demand
Material:
7005 Aluminum Alloy
Application:
Tunneling Blasting Boreholing
Net Weight Per Meter:
23.2 Kilograms Per Meter
Surface Treatment:
Mill Finish
Temper:
T6
Payment & Shipping Terms
Minimum Order Quantity
5 Units
Price
Negotiable
Packaging Details
Plywood Case Length 680CM
Delivery Time
1 Week
Payment Terms
T/T, T/T
Supply Ability
50Units/Month
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description

Underground Mining Industry Application Atlas Epiroc BMH2000 Feed Beam Aluminum Extrusion Profiles





Feature On Aluminium Extruded Profiles



1. Material: Aluminum Alloy 7005 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

                     curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic:
σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 4,000mm to 6,700mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 23kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 488cm X24cm X 20 cm



specificaiton of Aluminium Extruded Profiles



Material Option Aluminum Alloy 7005
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

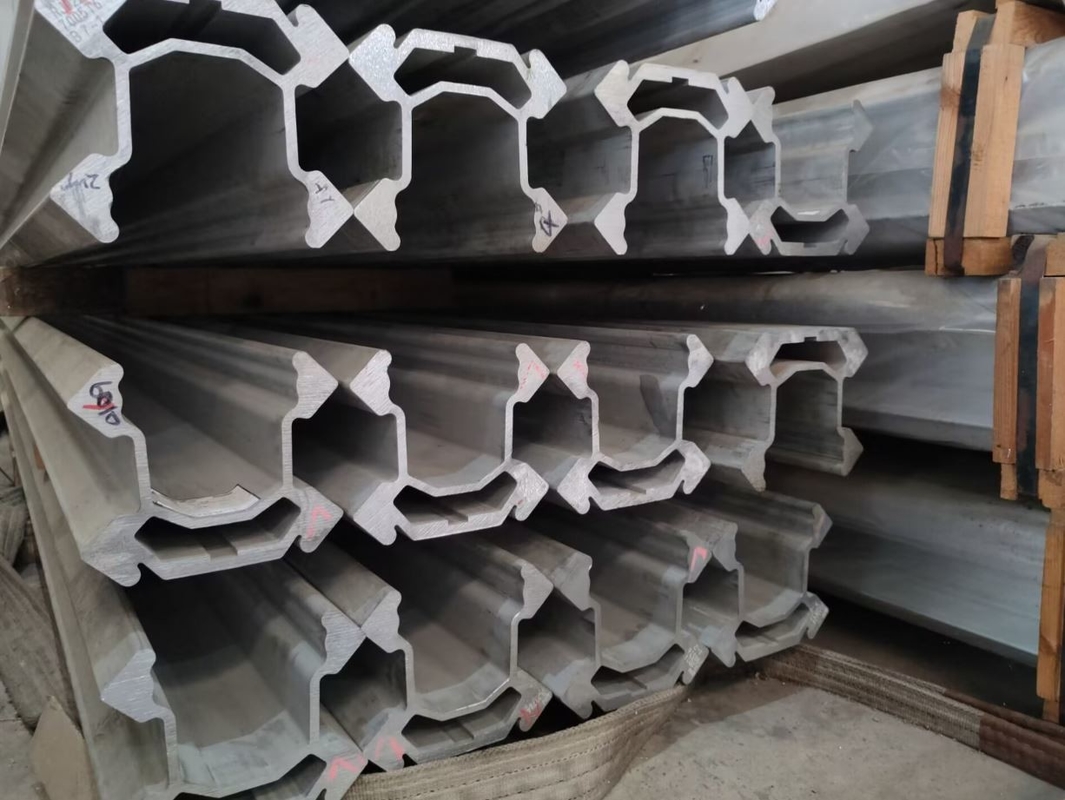

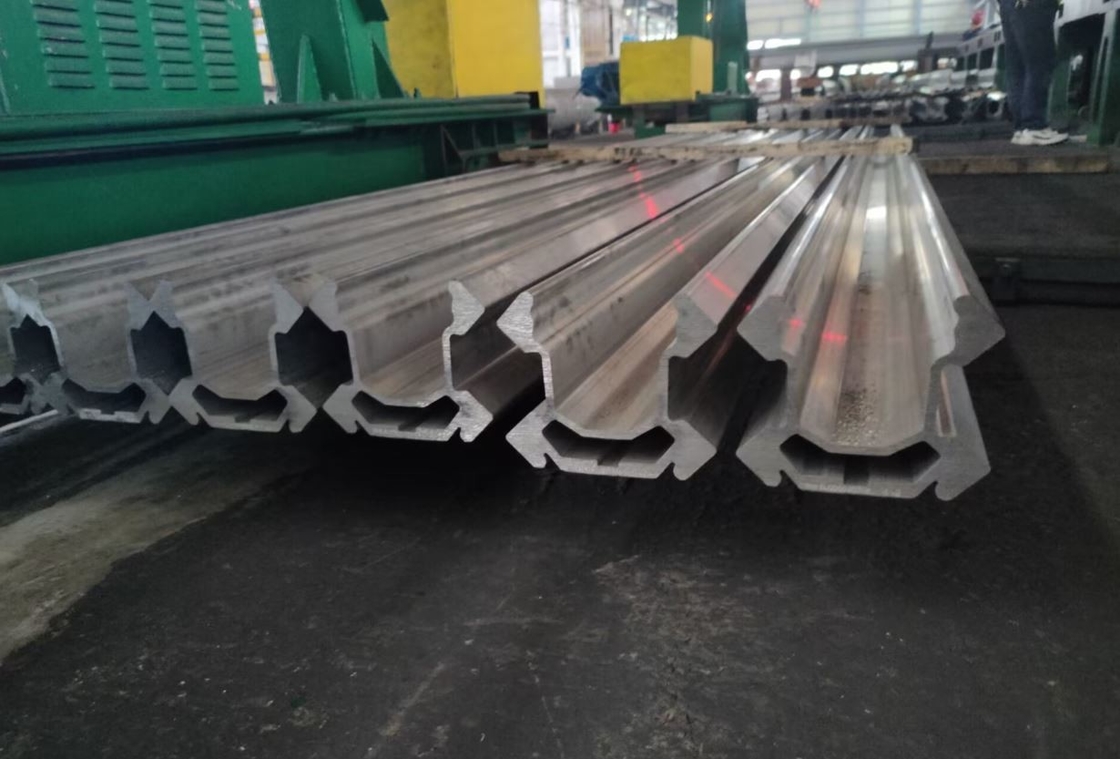

Underground Mining Industry Application Atlas Epiroc BMH2000 Feed Beam Aluminum Extrusion Profiles 0
