Tunneling Blasting Rock Drilling Usage 7,250mm TF500 Feed Beam Aluminium Extruded Profiles

Tunneling Blasting Rock Drilling Usage 7,250mm TF500 Feed Beam Aluminium Extruded Profiles

Tunneling Blasting Aluminium alloy Extruded Profiles

Aluminium alloy Extruded Profiles 7250 mm

TF500 Aluminium alloy Extruded Profiles

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

HYAFBTF500

Contact Us

Request A Quote
Product Details
Length:
7,250MM
Application:
Copper Mining Industry
Materials:
7000 Series Aluminum Alloy
Weight Per Meter:
29.3KGS Per Meter
Distoration Tolearnce:
1~5mm For Whole Length
Length Maximum:
8Meters
Surface:
Mill Finish
Payment & Shipping Terms
Minimum Order Quantity
5 Units
Price
Negotiable
Packaging Details
Plywood Case Length 7.39Meters
Delivery Time
1 Week
Payment Terms
T/T
Supply Ability
30Units/Month
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description

Tunneling Blasting Rock Drilling Usage 7,250mm TF500 Feed Beam Aluminium Extruded Profiles





SPECIFICATIONS



1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

                     curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa,
δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,250mm

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 29.2kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 739cm X26cm X26 cm





FEATURES

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2,100mm to 7,250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

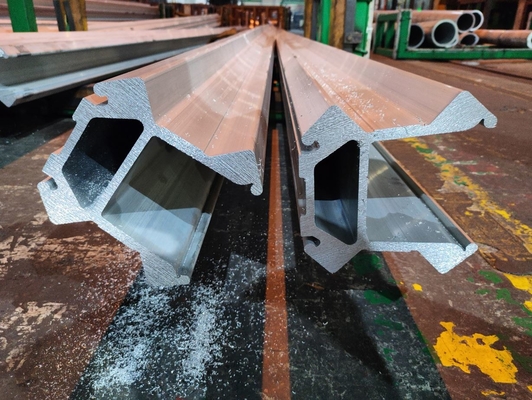

Tunneling Blasting Rock Drilling Usage 7,250mm TF500 Feed Beam Aluminium Extruded Profiles 0
