ROCK DRILLING BMH2000 BMH 2000 Feed Beam Profiles Aluminium Extruded Profiles

ROCK DRILLING BMH2000 BMH 2000 Feed Beam Profiles Aluminium Extruded Profiles

2000 Feed Beam Aluminium Extruded Profiles

6000MM Aluminium Alloy Extruded Profiles

Aluminium Alloy Extruded Profiles Rock Drilling

Place of Origin:

People's Republic of China

Brand Name:

HUANYU

Model Number:

BMH2000

Contact Us

Request A Quote
Product Details
Feed Beam Type:
ATLAS 281 JUMBO BOOMER
Length:
6,000MM
Machining:
As Per Buyer's Requirements
Material:
7005 Series Aluminum Alloy
Application:
HYDRAULIC ROCK DRILLING RIG
Net Weight Per Meter:
23.2 Kilograms Per Meter
Surface:
Mill Finish
Manufacturing Method:
Extruding
Payment & Shipping Terms
Minimum Order Quantity
5Units
Price
Negotiable
Packaging Details
Plywood Case Length 618CM
Delivery Time
1 Week
Payment Terms
T/T, T/T
Supply Ability
55Units/Month
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description

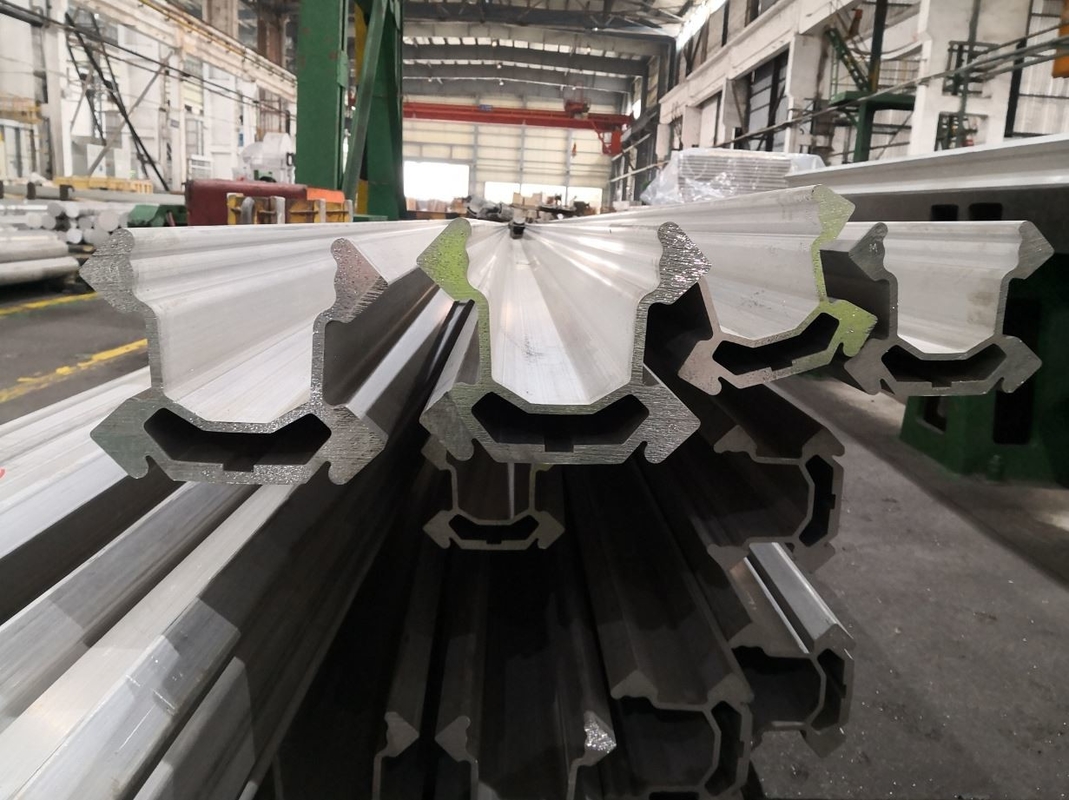

ROCK DRILLING BMH2000 BMH 2000 Feed Beam Profiles Aluminium Extruded Profiles





FEATURES



1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

                     curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic:
σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 23.2kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 618cm X25cm X25 cm



SPECIFICATIONS



Material Option Aluminum Alloy 7000 Series
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 14FT (4267mm)/ Ranging from 2100mm to 7250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length



ROCK DRILLING BMH2000 BMH 2000 Feed Beam Profiles Aluminium Extruded Profiles 0
