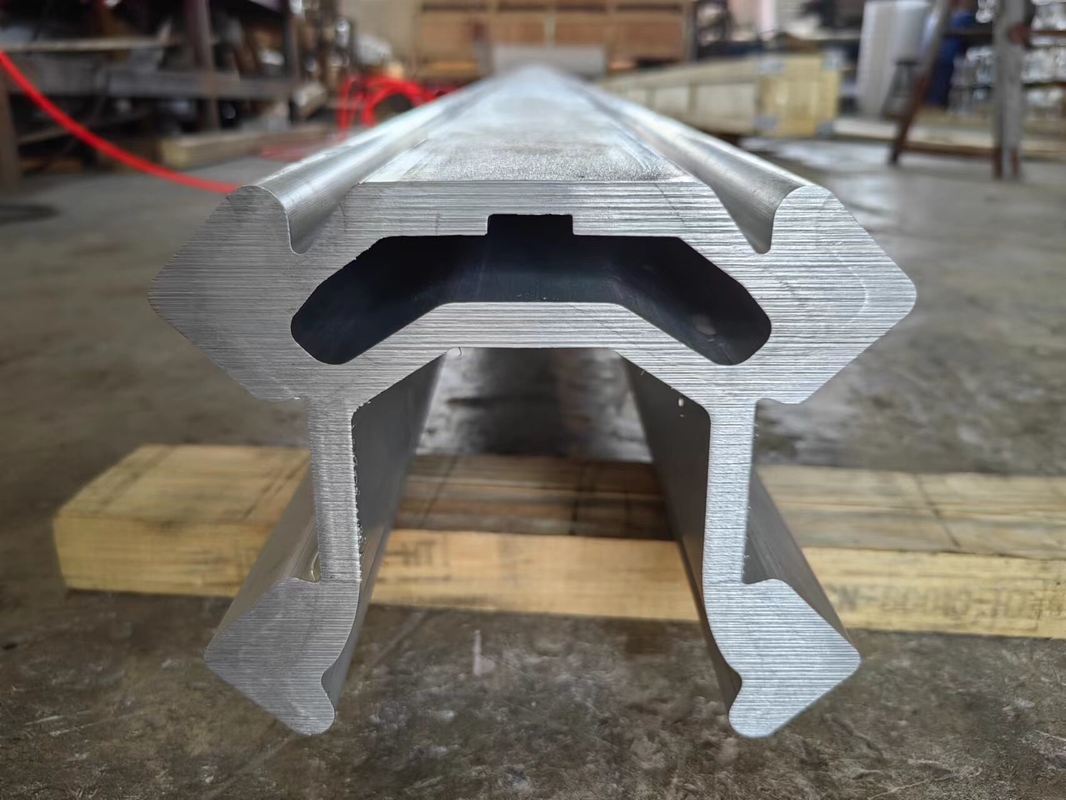

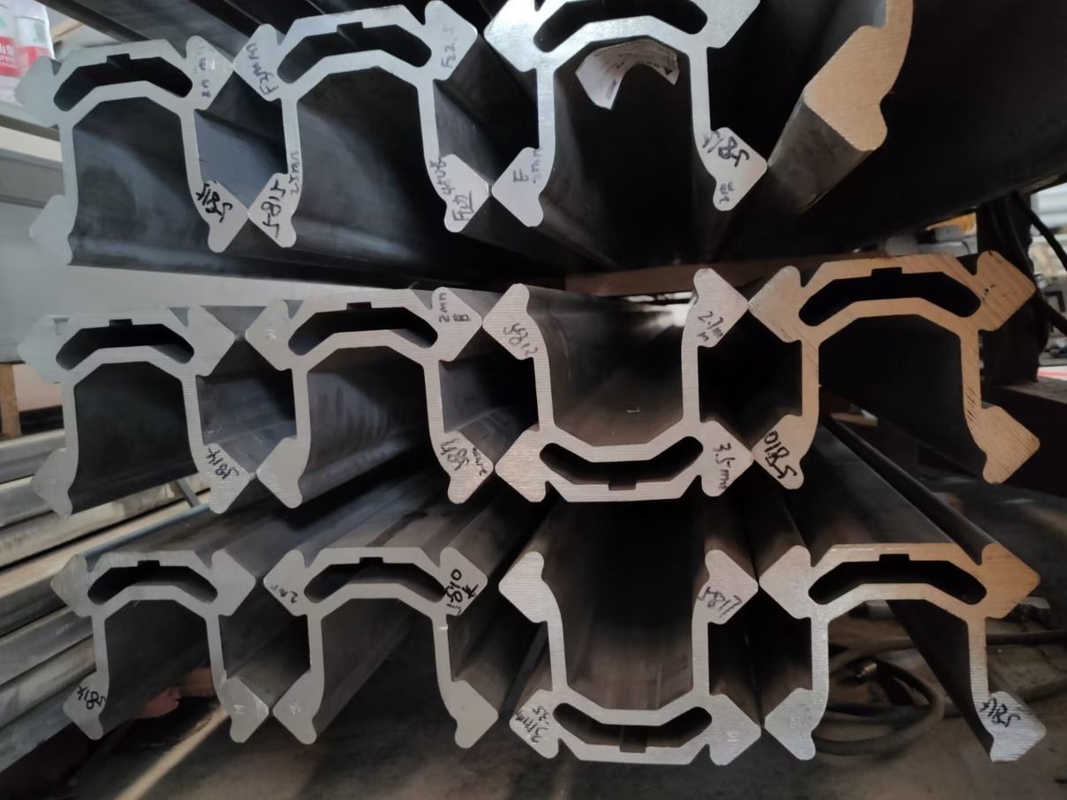

14 Feet Underground Mining BMH2000 Feed Beam Profiles Aluminium Extruded Profiles
Special Features
1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;
curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .
6. Length Option: ranging from 2,100mm to 6,000mm
7. Atlas Feed Beam can be machined as per buyers' demand
8. Net Weight: 26.2kgs/meter
9. Package : Plywood case for Feed Beam
10. Single package size: Length x Width x Height = 443cm X27cm X 27cm
| Material Option | Aluminum Alloy 7020 |
| Heat Treatment | T6 Temperature |
| Standards | GB/T6892-2006 |
| Mechanic | σb≥320MPa, σ0.2≥270MPa, δ5≥8% |
| Feed Beam Surface | Free from manufacturing defects, such as nicks, dings, scratches |
| FB Length Option | Standard 14FT (4,267mm)/ Ranging from 2,100mm to 6,000mm |
| Longitudianl Deviation | 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length |
