3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate

3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate

7075 T6 Aluminium Sheet Plate

74 Hammer Cradle Aluminium Sheet Plate

3128306174 Aluminium Sheet Plate

Place of Origin:

CHINA

Brand Name:

HUANYU

Model Number:

HYHP7075

Contact Us

Request A Quote
Product Details
Nominal Density (68° F / 20°C):
2.85 G/c.c.
Melting Range:
532°C - 635 °C
Tensile Strength (ksi):
78000 Psi
Yield Strength (ksi):
68000 Psi
Elongation %:
9%
Applications:
Mining Drilling Industry
Weight-to-strength Ration:
Excellent
Thickness:
35mm
Length:
850mm
Payment & Shipping Terms
Minimum Order Quantity
10 units
Price
Negotiable
Packaging Details
PLYWOOD CASE
Delivery Time
2 DAYS
Payment Terms
T/T
Supply Ability
180 UNITS PER MONTH
RELATED PRODUCTS
Contact Us
86-023-65820299-104
Contact Now
Product Description
3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate

SPECIFICATIONS:
Width: 280mm tolerance -0 /+1mm
Thickness: 35mm , tolerance -0.5/+1.5 mm
Length: 850mm
Net Weight: 16KGS/UNIT
Availability: 68 UNITS
Lead time: 2 days

FEATURES
7075 Aluminium Alloy
offers the highest strength of the common screw machine alloys.
The T6 and T651 tempers have fair machinability. Alloy 7075 is heavily utilized by the aircraft and ordnance industries because of its superior strength.



7075 Alloy Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Other Each Others Total
7075 min Rem - - 1.2 - 2.1 0.18 5.1 - - -
7075 max Rem 0.40 0.50 2.0 0.30 2.9 0.28 6.1 0.20 0.05 0.15



7075 Aluminum Typical Physical Properties

Characteristic English Metric
Nominal Density (68° F / 20°C) 0.101 lbs./ in ³ 2.80 Mg/m³
Melting Range 990° F - 1175° F 532°C - 635 °C
Specific Heat (212 °F / 100°C 0.23 BTU/lb - °F 960 J/kg-°K

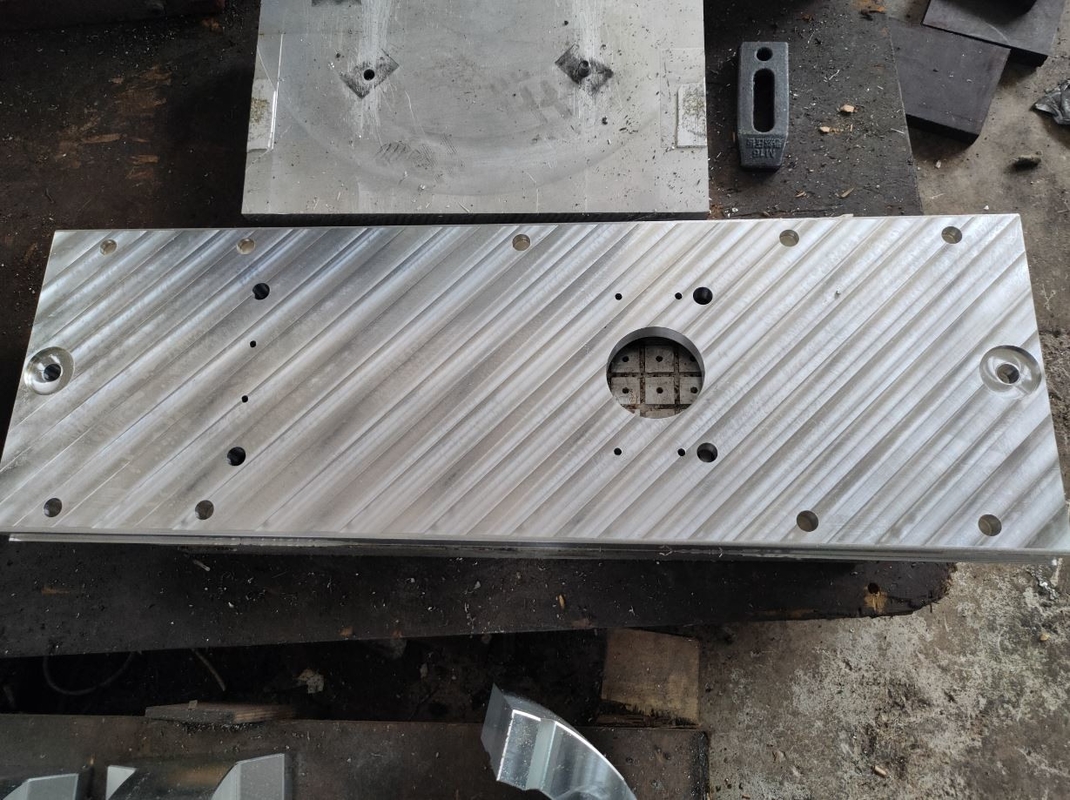

3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate 0

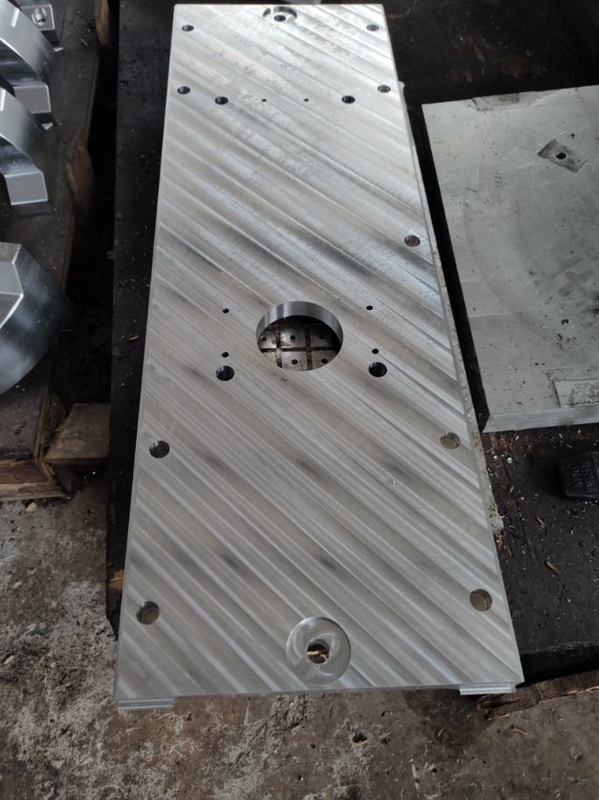

3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate 1

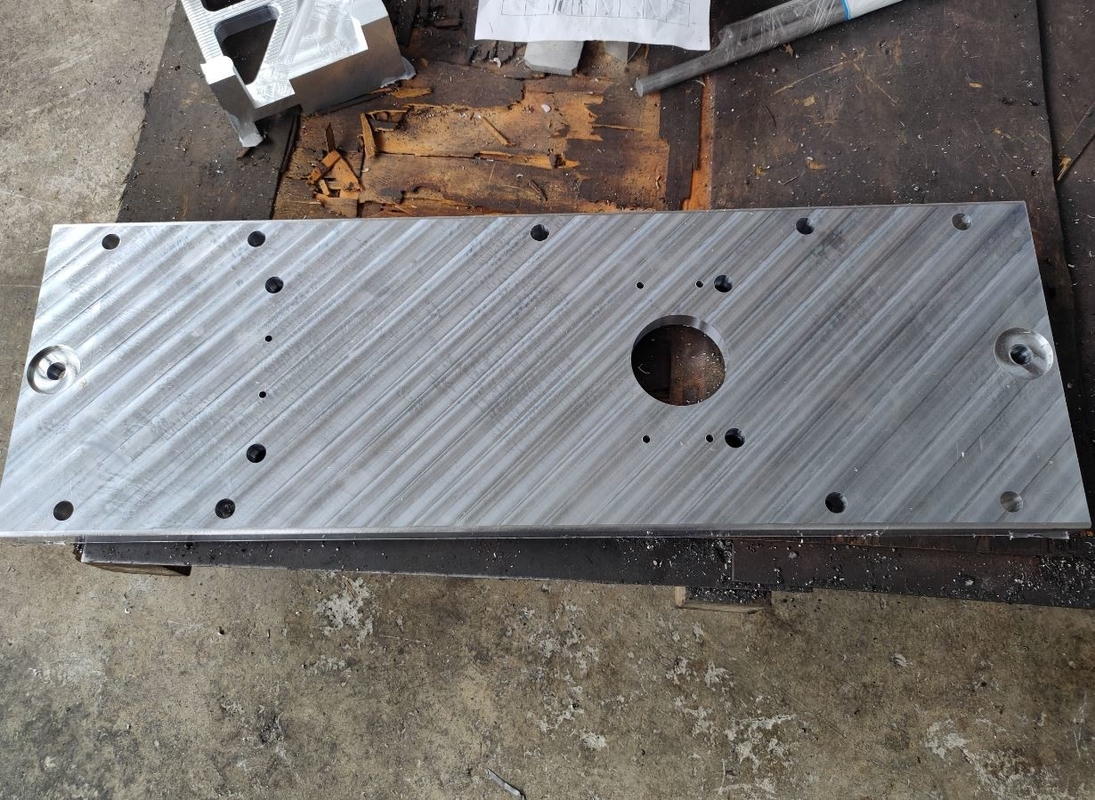

3128 3061 74 Hammer Cradle 3128306174 Drifter Cradle 7075 T6 Aluminium Sheet Plate 2
