Place of Origin:
CHINA
Brand Name:
HUANYU
Model Number:
ATLAS HOLDER SET
Contact Us

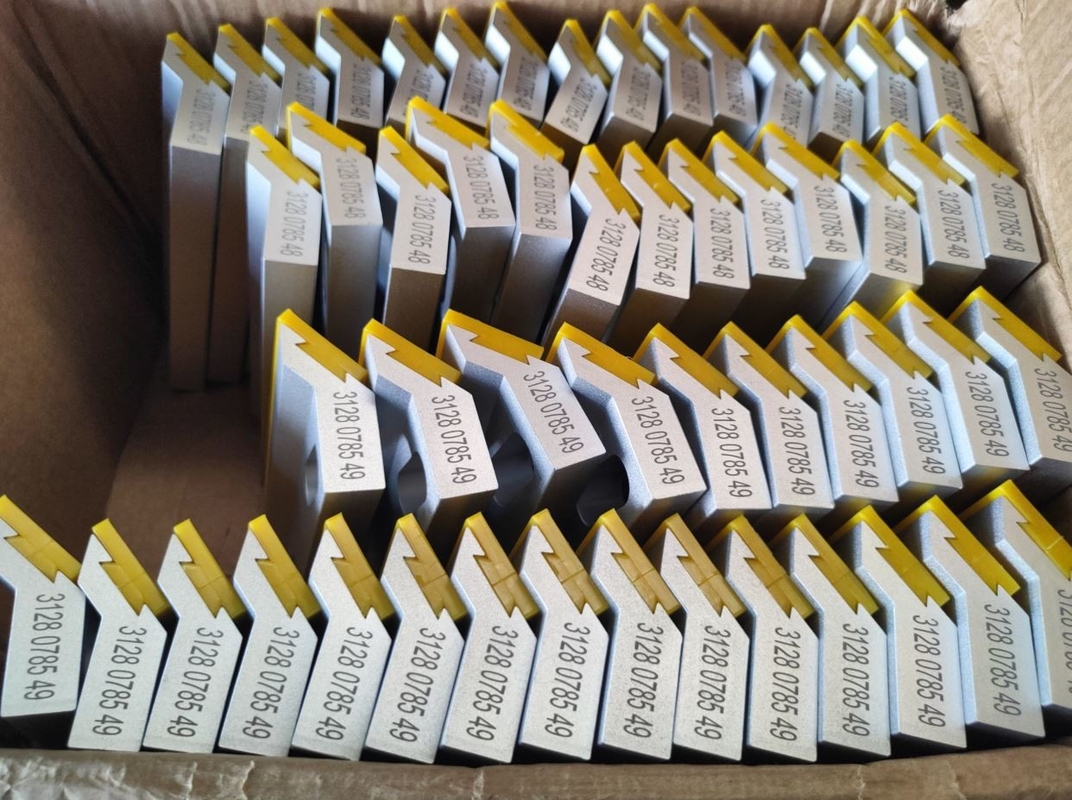

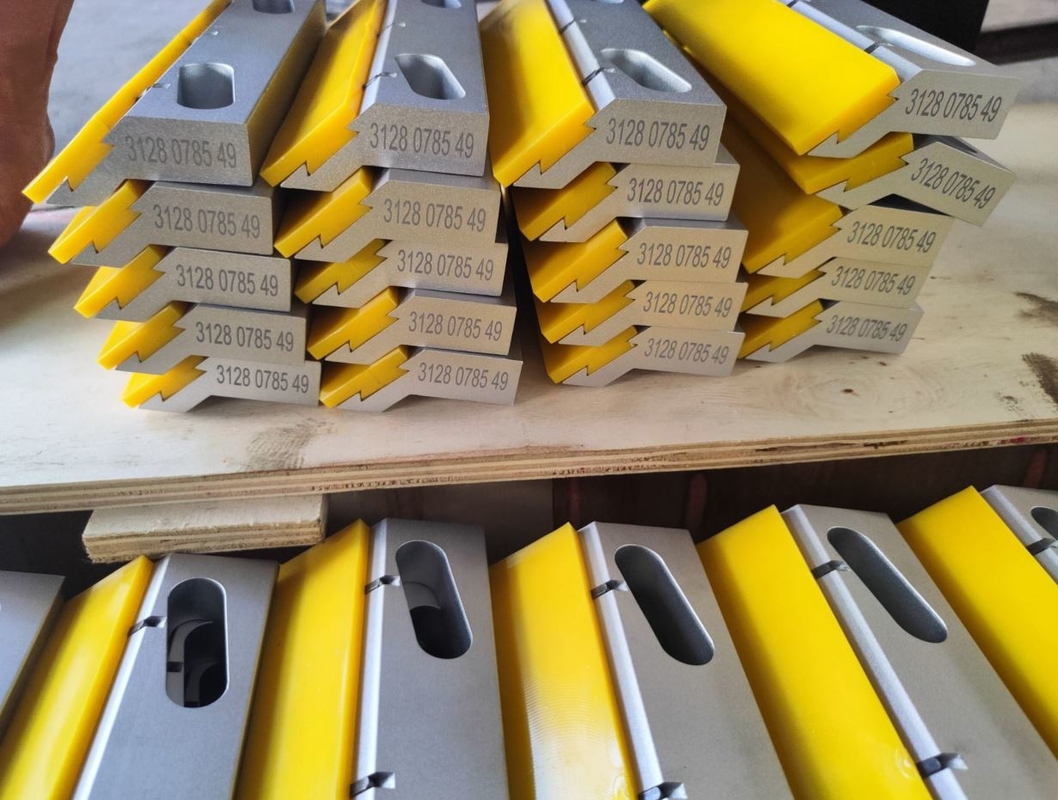

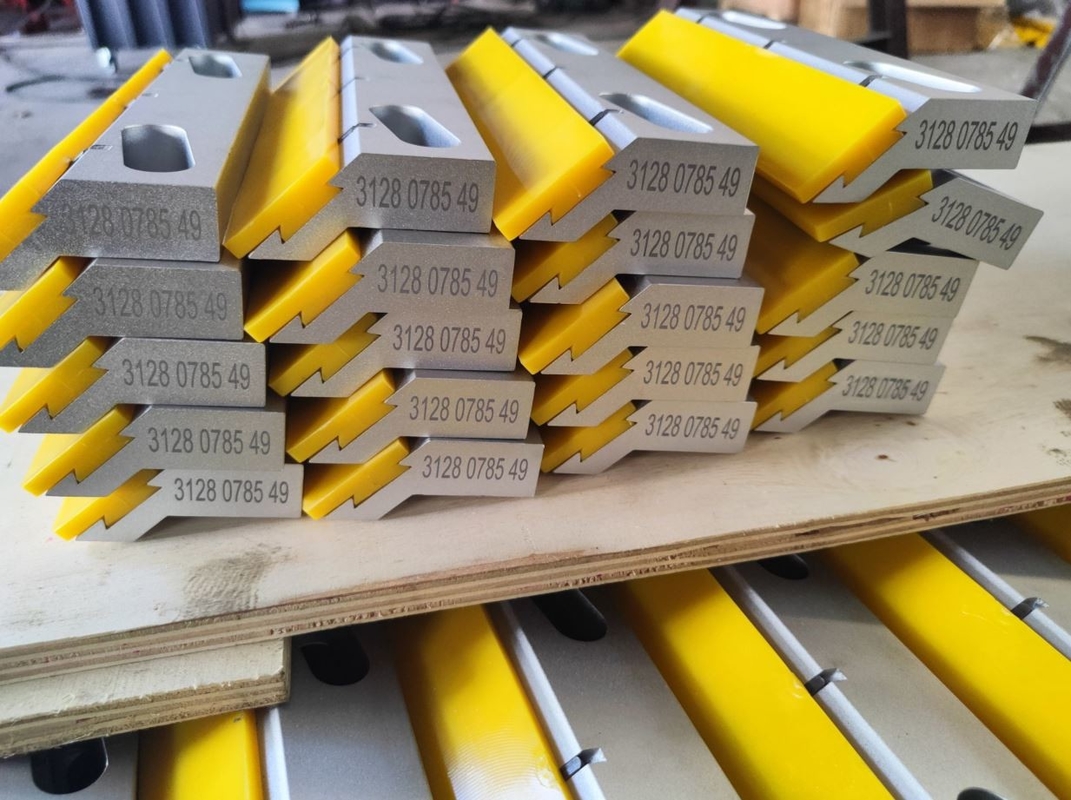

ATLAS EPIROC 6063 ALUMINUM HOLDER PROFILES PATINE PERFIL 3,250MM ALUNINIUM EXTRUDED PROFILES
Aluminium Extruded Profiles Used As Holder For 281 282 JUMBO BOOMER
Aluminium Holder Profiles suitable to produce
3128 0785 48
3128 0785 49
3128 0784 38
3128 0784 39
6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.
Specifications on High Strength 6063 T6 Extruded Profiles Used As Constructional Wall
Wall Thickness: 18.70mm
Shape: Customized
Length: 4200mm
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | 0.20 | 0.45 | ||||||||
| Maximum | 0.60 | 0.35 | 0.10 | 0.10 | 0.90 | 0.10 | 0.10 | 0.10 | 0.05 | 0.15 |
Remainder Aluminum
| Temper | Tensile | Hardness | ||||
|---|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T5, T52 | 27 | 186 | 21 | 145 | 12 | 60 |
| T6 | 35 | 241 | 31 | 214 | 12 | 73 |
